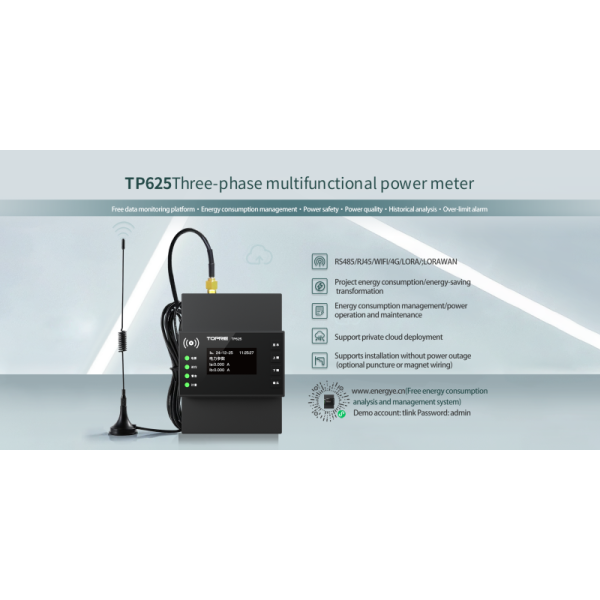

Guide Rail Type Smart Energy Meter Three Phase Wi-Fi Power Meter

Name: Guide Rail Type Smart Energy Meter Three Phase WiFi Power Meter
Brand: TOPRIE
Price: 45.00 USD

China Guide Rail Type Smart Energy Meter Three Phase Wi-Fi Power Meter wholesale

Brand Name : TOPRIE

Model Number : TP625

Certification : CE,ROHS

Place of Origin : China

MOQ : 1 piece

Price : USD 45.00~ USD 109.00 per piece

Payment Terms : MoneyGram,Western Union,T/T,D/P,D/A,L/C

Supply Ability : 100 pieces per day

Delivery Time : 5-8 working days

Packaging Details : Packed in Paper carton

Keywords : Electrical meter

Color : Black

OEM : Available

Warranty : 12 months

Configuration method : Software

Remote monitor : Mobile APP, IOT platform

Contact Now

An energy meter is an electrical device measuring the amount of electrical power consumed. This device allows the determination of energy consumption over a certain time, whether a residential building, a business, or an electrically powered device. It provides detailed information on consumption to reduce electricity bills and increases knowledge about the status of the electricity grid, improving its performance and the quality of service for customers.

Guide Rail Type Smart Energy Meter Three Phase Wi-Fi Power Meter

Technical Parameters

Parameter	Specification
Rated Voltage	AC100V~265V
Power Consumption	3W
Action Delay Time	1~60sec continuous adjust
Nominal Voltage	AC10V~550V
Nominal Current	AC0.02A~5A
Measuring Accuracy	Room Temperature: Frequency 0.01Hz, voltage & current class 0.2, power rate class 0.5, active energy class 0.2, reactive energy class 2 -20℃~60℃: Frequency 0.01Hz, voltage & current class 0.5, power rate class 0.5, active energy class 0.2, reactive energy class 2
Switch Quantities Input	One channel, photocoupler isolated for passive dry contact; input type: internally wetted
Switch Quantities Output	One channel, electromagnetic relay output; contact capacity: 5A continuous, 250V AC/5A DC30V/5A
Protocol	Modbus RTU/MQTT/DLT645 / customized protocol
Communication	4G, WiFi, LoRa or LoRaWAN can be optional
Installation Method	DIN Rail
Display	OLED screen
Event Logs	40 Alarms and switch logs
Operating Environment	-20℃~60℃ RH 5%~85% (no condensing)
Transport & Storage Temperature	-25℃~70℃
Atmosphere Pressure	70kpa~106kpa
Altitude	3200imp/Kwh
Baud Rate	115200bps
Dimension	100×73×70mm
Weight	650g
Material	ABS
Fireproof Level	V0

Advantages

Real-time measurement solution: Can measure 30 different electrical parameters, including three phase voltage, current, power, power factor, etc.
Input & Output: One channel of switch quantities input and one channel of relay output
Energy measurement: Bidirectional energy, four-quadrant energy, harmonic energy, cumulative energy
Demand measurement (optional): Maximum demand, demand cycle
Communication protocols: Supports Modbus RTU, MQTT, Modbus TCP, and other customized protocols
Harmonic detection: Total harmonic distortion rate, individual harmonic content (2nd to 31st order)
Real-time monitoring solution: Mobile APP and Cloud IoT platform without charge

Applications

Energy meter application in different fields, including DC Control System, Energy Power Generation System, Power Distribution Cabinet, DC Excitation System, Smart Building, City, Hospital, School, etc.

F A Q

Q: What is warranty of your energy meter?

A: The warranty is 12 months. If you need to extend the time, welcome to contact us for more details.

Q: What is the MOQ (minimum order quantities)?

A: Normally, our brand (Toprie) is without MOQ. If you want to customize your brand, there will be a MOQ of 100 pcs.

Q: What is the communication protocol of your energy meter?

A: 4G WiFi support MQTT (non-encryption). RS485 support Modbus RTU. If you want to customize the protocol, please do not hesitate to let us know and we will accommodate your requirements to meet your demand.

Q: What is your lead time?

A: Sample time 3-5 working days, massive orders will depend on your order quantities and other requirements.

Q: Are you a manufacturer? And where is your factory?

A: Yes, we are a manufacturer located in Shenzhen City. Welcome to come and visit us.
